Steam Soil Sterilizer Models
Fixed, cart, crawler or truck mounted, to suit your area and site.
Models
Model overview
Each machine is built around a TMM fully automatic once-through steam boiler and mounted on a carrier to suit the site.
| Model | Carrier | Boiler and capacity | Typical use |
|---|---|---|---|

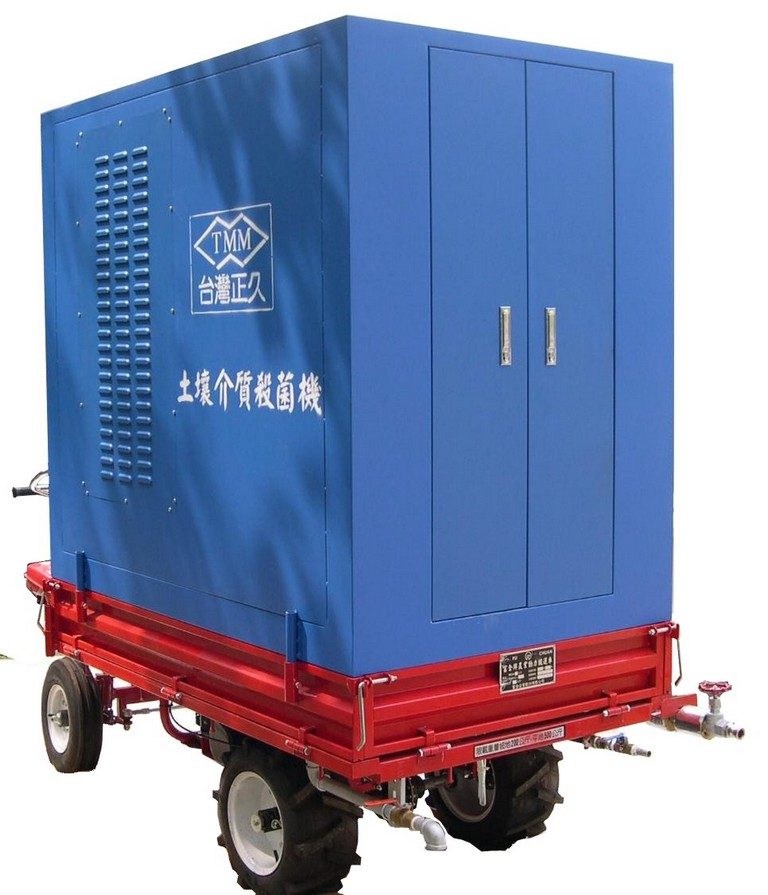

| Model 200 | Farm cart (soil and media sterilizer) | SAC-20EA; 200 kg/h equivalent evaporation (107,800 kcal/h) | Growing media, research stations, small areas |

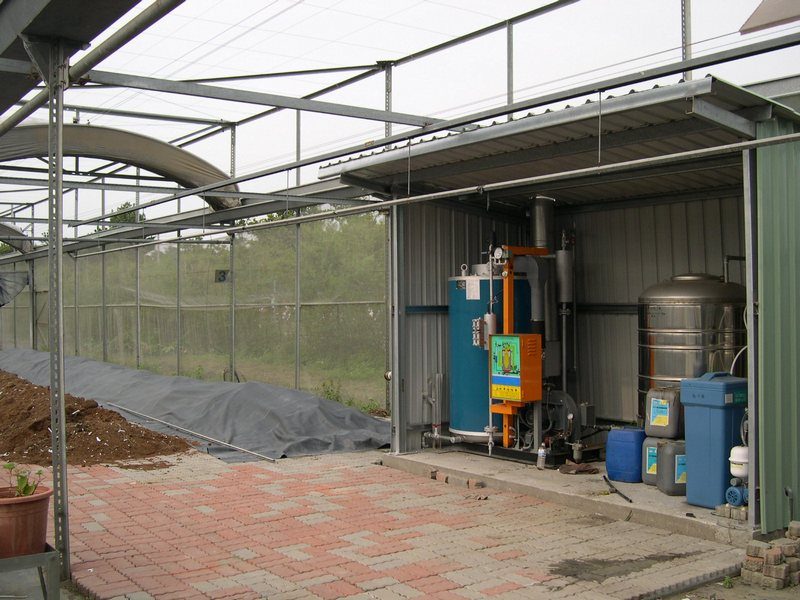

| Model 400 | Fixed installation | Built to order — please call us | Next to greenhouses |

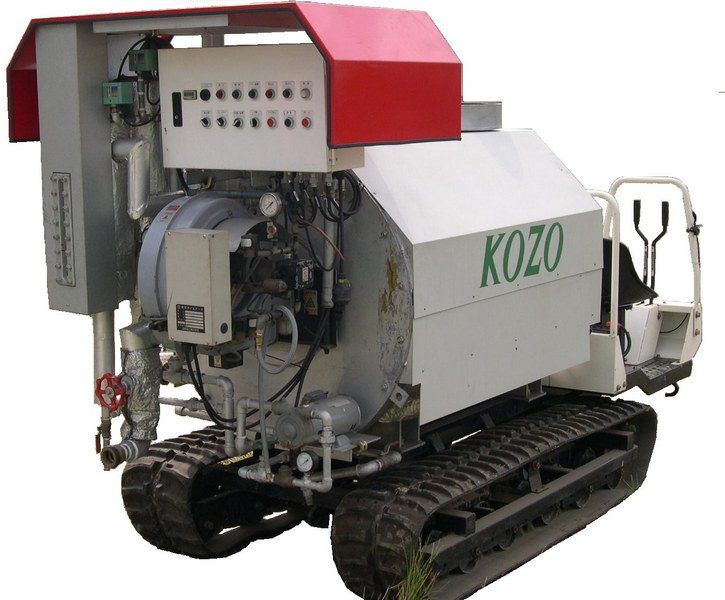

| Model 500 | Small self-propelled crawler | Built to order — please call us | Inside greenhouses |

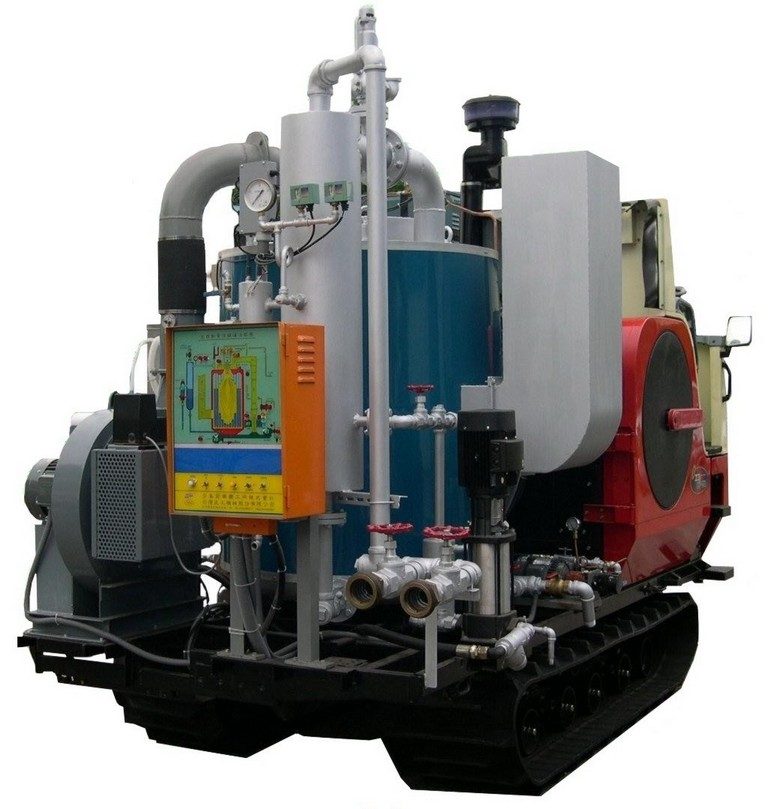

| Model 1500 | Large self-propelled crawler | SAC-150EA; 1,500 kg/h equivalent evaporation (808,500 kcal/h) | Large greenhouses and open fields |

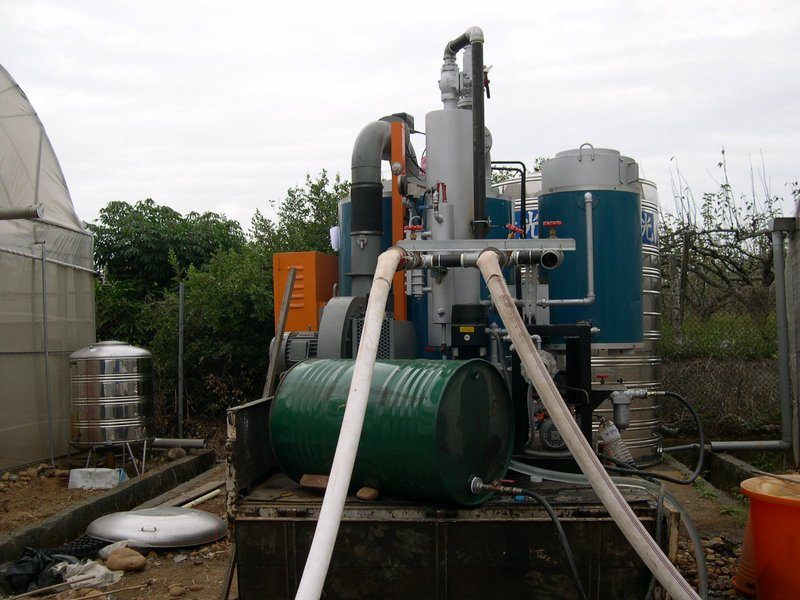

| Model 1500 | Truck mounted | Same as above | Work across sites |

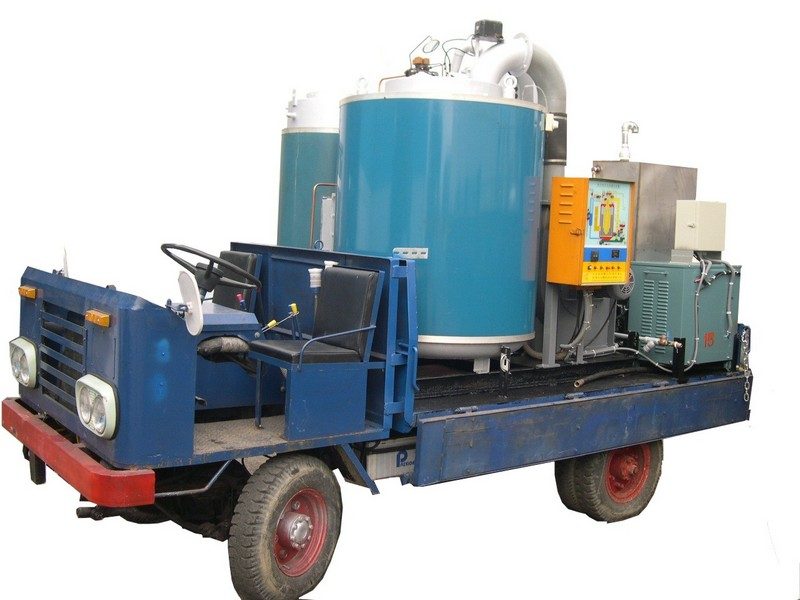

| Model 1500 | Farm tractor mounted | Same as above | Farm roads and fields |
SAC-150EA
Model 1500 self-propelled field unit
- SAC-150EA once-through steam boiler, heat output 808,500 kcal/h (approx. 940 kW)
- Crawler drive for greenhouses and fields
- Greenhouse test: 6.4 × 60 m per batch reached 70–80 °C in 1.5–2 hours
Video
Videos
Need a quote or technical advice?
Send us your application, capacity, working pressure and fuel. We will recommend a model and quote.
